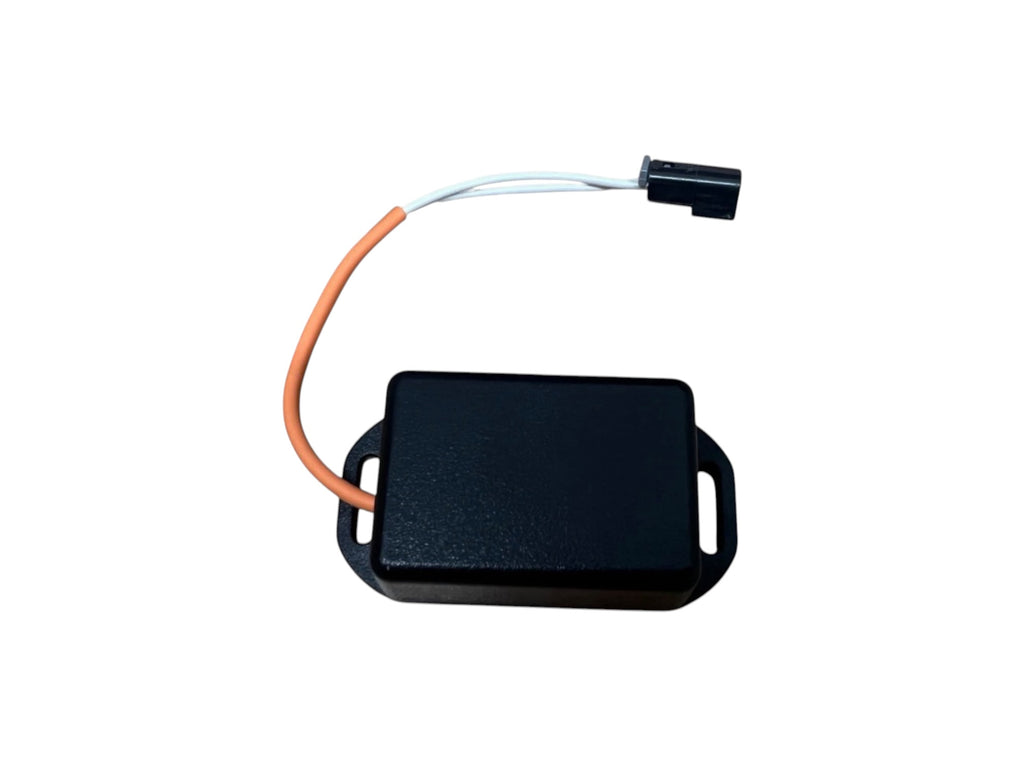

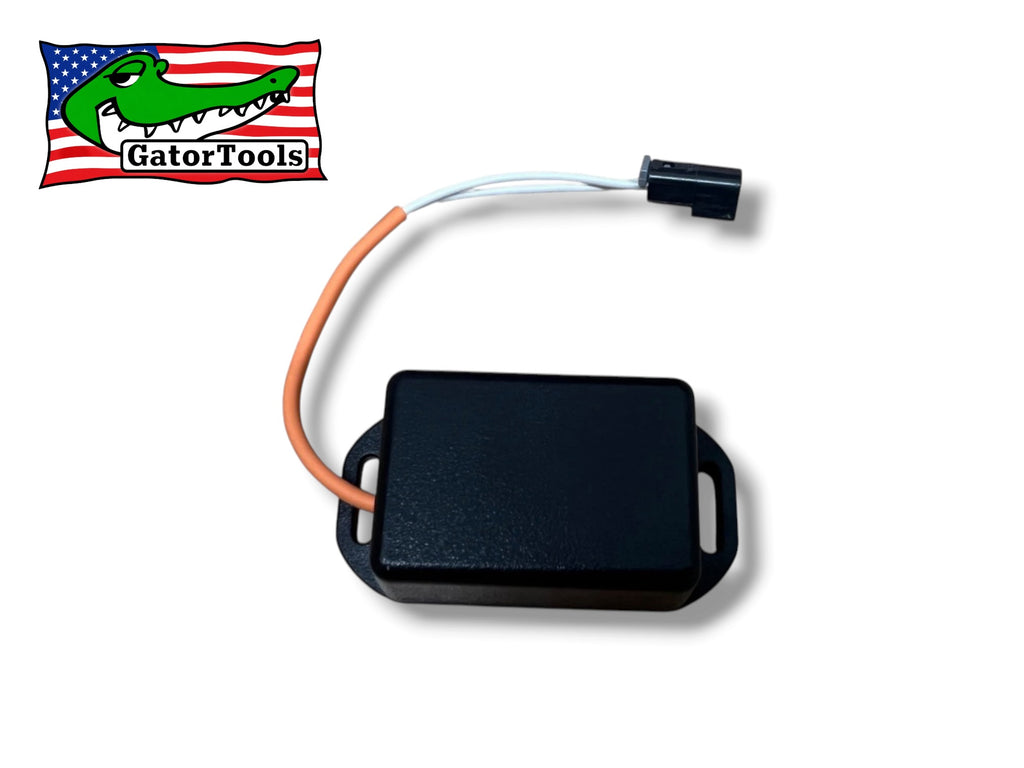

89-02 GM Corvette Camaro Vats Bypass Module - VBM100

ITEM DESCRIPTION

The VATS bypass module for sale eliminates the need for your factory GM chip key.
No more dealing with ignition wires tearing or breaking every few years.

This module installs easily with a simple plug-in connection — no splicing required.
Just plug it into the connector under your dash, set your VATS number, and you’re ready to go.

⚠️ IMPORTANT:
Do not pull or tug on the module wires when removing it.
The internal wires are delicate and may break.
Damage caused by improper removal (such as ripped wires) is not eligible for refund.

PROGRAMMING INSTRUCTIONS

If you already know your VATS number:
Follow the included step-by-step guide to input the correct resistor value inside the unit.

If you do NOT know your VATS number:

Toggle one resistor at a time

Wait 5 minutes between each attempt

Watch the Security light on your dashboard

When the correct resistor value is selected, the Security light will turn off

Leave that resistor in the ON position

FITMENT

Buick
1990–1991 Reatta
1994–1996 Regal
1990–1991 Riviera
1994–1996 Roadmaster

Chevrolet
1986–1996 Corvette
1994–1996 Caprice, Impala
1989–2002 Camaro
1995–2001 Lumina
1995–2000 Monte Carlo

Cadillac
1993–1996 Fleetwood
1989–1991 Seville

Oldsmobile
1994–1998 Cutlass Supreme
1990–1991 Toronado

Pontiac
1989–2002 Firebird
1994–1996 Grand Prix
